Quick Check Tension Meters

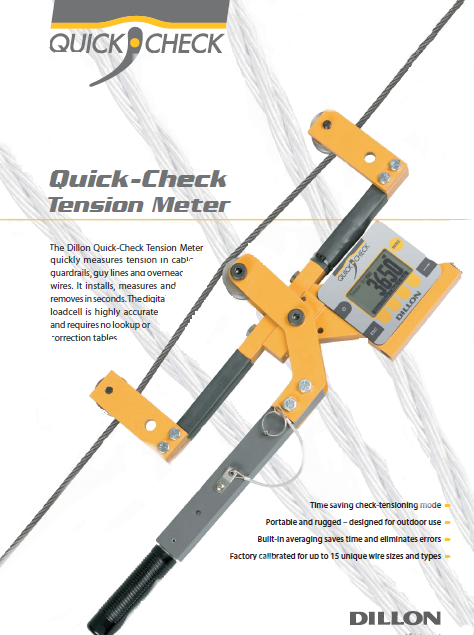

The Dillon Quick-Check Tension Meter quickly measures tension in cable guardrails, guy lines and overhead wires. It installs, measures and removes in seconds. The digital loadcell is highly accurate and requires no lookup or correction tables.
The Fastest Cable Tension Meter
The Dillon Quick-Check can be placed on a cable, measure its tension, and removed in under five seconds! There are no complex lookup tables, no conversion charts. The operator can quickly select from 15 different wire sizes and types stored in Quick-Check’s memory. The Check Tensioning mode graphically displays the current and target tensions for extremely quick setting of line tension. Even the infrequent battery changes are quick.
The Quick-Check can be employed in many industries to ensure proper tensioning. Typical applications include tower and stack guy wires, pretensioned cable barriers, bridges, elevators, winch rope, overhead electric transit wires, fall arrest systems, aircraft cables and utilities.
Tension capacities: 2000 lb/10 kN/1000 kg10,000 lb/45 kN/4500 kg
Wire sizes: 3/16 inch through 1 inch
Accuracy: + 3% instrument capacity (calibrated to specific wire size & type + 5% with same wire diameter as calibrated but different wire type)
Loading error: Cable elongation of only 0.08 inch (2mm)
Display:Dot-graphic LCD display supports full text and 1 inch high digits.
Sheave range: Set accommodates rated wire size and ½” smaller. Multiple sheave sets may be used.
Suggested wire calibrations: Calibrate each wire diameter needed with the most appropriate sheaves. If two wire types are used of the same diameter (e.g. ½” 1×7 and ½” 6×19), calibrate each type independently if accuracy is critical.
Environment protection: Suitable for continued outdoors use.
Operating range: -4°F to 140°F (-20°C to 60°C)
Tension units of measure: pound-force, kilogram force, Newtons.
Resolution: Configurable low/med/high
Recalibration: At user discretion. Commonly 24 months but should be more frequently with heavy use. Factory recalibrations conducted typically in 2-4 days. On-site recalibration may be possible through your Dillon distributor.
Size: 10 x 23 x 3 inch (25 x 59 x 8 cm)
Weight: Approx 11 lb (5 kg)
Warranty: 2 years parts and labor
