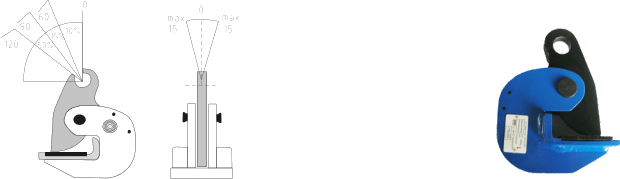

Horizontal Clamp

9010 – Horizontal clamp

Description:

  • Designed for transferring, tilting and stacking steel plates in the horizontal plain
  • These clamps must always be used in pairs
  • CE, Traceability code, WLL, Jaw opening & GRIPTON mentioned in label
  • CE, Traceability code, WLL & GRIPTON mentioned on label

Standard: EN 12195

Material: Jaw: Alloy steel, Body: Carbon steel

Factor of safety: 4 to 1

Construction: Quenched & tempered Jaw

Proof load: Individually proof tested to 2 times of working load limit

Finish: Powder coated
