Lifting Supplies

Saudi Dutest provides a wide range of highest-grade lifting supplies in KSA. This lifting equipment include a wide range of chain slings, wire rope slings, general lifting gears, shackles, webbing slings and force measuring equipment.

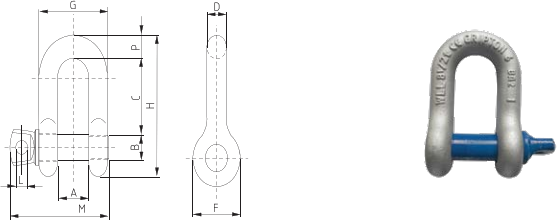

Screw Pin D Shackle

5300 – Screw Pin D Shackle

Description:

  • Designed for frequent, non permanent applications
  • Suitable for overhead lifting
  • CE, Traceability code, Grade, Size, WLL & GRIPTON or GPT embossed

Standard: US federal specification RR-C-271 D

Material: Body: Forged carbon steel, Pin: Alloy steel

Factor of safety: 6 to 1

Construction: Quenched & tempered

Proof load: Individually proof tested to 2 times of working load limit

Finish: Body: Hot dip galvanised, Pin: Powder coated
